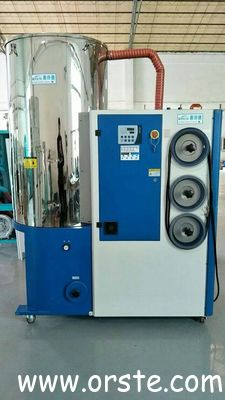

Honeycomb Dehumidifying Molecular Desiccant Dehumidifier Dryer for PET PA TPU PETG Drying
1 Set / Order
MOQ
3520 USD / Set
Price
Honeycomb Dehumidifying Molecular Desiccant Dehumidifier Dryer for PET PA TPU PETG Drying
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Dongguan, China
Brand Name: ORSTE
Certification: CE, ISO, SGS
Model Number: OCD-40/40H ~ OCD-750/400H
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 7-15 days
Payment Terms: TT, LC, Paypal, West Union, Cash
Supply Ability: 500-3000 Sets / Year
Specifications
Application: Drying Of Hygroscopic Plastic Material
Material: Stainless Steel
Color: Green And White
Function: Drying Of PET PA TPU
Name: Dehumidifying Drying Machine
Effect: Moisture Content Lower Than 200ppm
Product Description

Honeycomb Dehumidifier, Molecular Dehumidifier, Desiccant Dehumidifier, Dehumidifying Dryer, Plastic Dryer, Plastic Drying Machinery, Honeycomb Dryer, PET Dryer, PA Dryer, TPU Dryer



NAMING PRINCIPLE



OCD – xx/xxxH

①    ②  ③

① Orste “Three-in-one” Compact Dryer

② Hopper Capacity (L)

③ Dehumidifying Air Quantity (m3/hr)

H: Honeycomb Rotor Type





Product Features



1. The OCD compact dryers can be equipped with up to four fully insulated drying bins to suit the required total throughput.

2. OCD compact dryers are the most effective way of conditioning hygroscopic plastic granules for processing and removing surface moisture.

3. The use of corrosion resistant stainless steel ensures a long lifetime and avoids contamination of the plastic granules.

4. Transparent window design for filter makes it convenient to monitor the condition of filter.

5. Material-contact surface of hopper is specially made of dust-free mirror-like stainless steel, it is suitable for the production of optical lens or food standard plastic products production.

6. High-density return air filter ensures no contamination to the material in the conveying of materials.

7. For models below OCD-450/200H, air-cooling methods is applied, which ensures low energy-saving and convenient for movement.



Application



ORSTE “Optical” Dehumidifying Dryers provides the advantages of a consistent dew point and maximum energy efficiency. They combine the function of dehumidifying, drying and two-stage conveying into one compact machine, specified for the production of “optical class” and “food standard” products, such as lens, LGP, disposable lunch box etc. The quality desiccant honeycomb rotor provides continuous and constant low dew-point air which can be lower than -40 oC under ideal conditions.



Product Specification / Parameters



Model OCD-

20/40H

40/40H

80/80H

120/80H

160/120H

230/120H

300/200H

450/200H

600/400H

750/400H

Drying System

Hopper Capacity (kg)

12

25

50

75

100

150

200

300

400

500

Drying Heating Power (kw)

4

4

4

4

6

6

12

12

18

18

Drying Blower Power (kw)

0.4

0.4

0.7

0.7

0.7

0.7

1.5

1.5

3.75

3.75

Dehumidifying System

Dehumidifying Air Quantity (m3/hr)

40

40

80

80

120

120

200

200

400

400

Regenerative Heater Power (kw)

2.5

2.5

2.5

2.5

2.5

2.5

5.4

5.4

7.2

7.2

Regenerative Blower Power (kw)

0.2

0.2

0.2

0.2

0.2

0.2

0.4

0.4

0.75

0.75

Feeding System

Feeding Blower Power(kw)

0.75

0.75

1.1

1.1

1.1

1.1

1.5

1.5

2.2

2.2

Dia. of Material Pipe (inch)

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

Dia. of Return Air Pipe (inch)

2

2

2

2

2.5

2.5

2.5

2.5

3

3

OMH (L)

7.5

7.5

7.5

7.5

7.5

12

12

12

12

30

OPH (L)

3

3

3

3

3

7.5

7.5

7.5

12

12

Dimension

H (mm)

1490

1870

2010

2100

2260

2370

2370

2410

2520

2570

W (mm)

1000

1050

1180

1180

1340

1340

1440

1460

1645

1645

D (mm)

730

730

780

780

810

810

940

940

1145

1145

Weight (kg)

280

295

325

340

505

515

570

610

650

700



Application Cases
