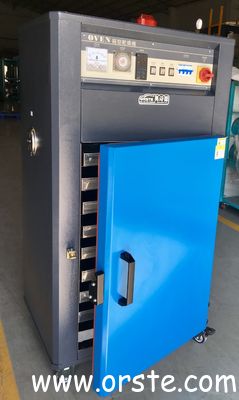

“OOD” Orste Oven Dryers
NAMING PRINCIPLE
OOD - xxx
① ②
① Orste Oven Dryer
② Quantity of Trays
FEATURES
OPTIONS
Flanges of air inlet and outlet
Application
OOD series of oven dryers are mostly used for simultaneous drying of different kinds of polymers in small quantities or for drying materials for trial molding. For tempering after plastic molding, it can increase product tenacity and improve product quality. The oven dryer can also be applied in preheating and drying of agricultural and food (grain, garlic, tea, and etc.), electric motor and part, electroplating, pharmaceutical, paint, printing and others.
Functional Scheme
Parameters
| Model | OOD-5 | OOD-9 | OOD-20 |
|
External dimension L*W*H (mm) |
820×630×1260 | 820×630×1480 | 820×1500×1750 |
|
Internal dimension L*W*H (mm) |
500×600×600 | 500×600×900 | 500×1150×1200 |
| Motor Power(kw) | 0.375 | 0.375 | 1.5 |
| Heater (kw) | 4.5 | 6 | 6*2 |
| No. of Trays | 5 | 9 | 20 |
|
Tray Dimensions L*W*H (mm) |
600×500×50 | 600×500×50 | 600×500×50 |
| Capacity (kg) | 50 | 90 | 200 |
| Material | SUS304 stainless steel plate | ||
| Temperature range | 40℃～180℃ | ||
| Accuracy | ±5% | ||
| Weight (kg) | 148 | 178 | 415 |
We reserve the right to change parameters without prior notice.
Notes:
(1) For the best drying effect, please choose the OOD model according to 90% of the capacity.
(2) For the benefit of heat dissipation of motor and spare parts, please do not place any objects on the top of the OOD oven dryer.
(3) Above loading capacity is based on pellet material of 0.65kg/L in bulk density and 3-5mm in diameter.
(4) Power: 3ф, 230/400/460/575VAC, 50/60Hz.
Machine Details
