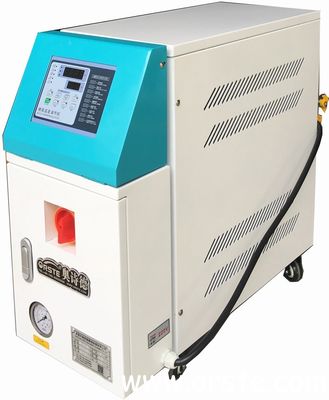

Water-type Mold Temperature Controller
OMT – xxxx – xx
① ② ③
① Orste Mold Temperature Controller
② First Two Numbers: Heater Power (kw)
Last Two Numbers: Pump Power (*10-1HP)
HTW: Medium is Water with High temperature D: Dual-heating Zone
1. Equipped with the design of one week automatic start/stop timer, screen can be converted between Chinese and English.
2. P. I. D. multi-stage temperature control system can maintain a mold temperature with an accuracy of ±1oC.
3. Adopts high efficiency water cycle pump, which can meet the demands of temperature control for precise molds and mold loop with minor diameter to achieve precise temperature control and high efficiency heat exchange. Pump inside adopts stainless steel to avoid explosion.
4. Multiple safety devices including power reverse phase protection, pump overload protection, overheat protection and low level protection that can automatically detect abnormal performance and indicate this via visible alarm.
5. For standard OMT-W, the heating temperature can reach 120oC, while for OMT-HTW, it can reach 160oC.
6. Equipped with high pressure protection, safety pressure relieving, automatic water supplying and air exhausting.
7. For OMT-W, direct cooling is adopted, while for OMT-HTW, indirect cooling is adopted. Automatic water supplying device ensures fast heat exchange.
OMT-W series water heaters are widely used in the production of plastic product. They are mainly applied to heat up the mold and maintain temperature, also they can be used in other similar fields. Through the principle of heat exchange, they can shorten the product mold cycle and improve production efficiency.
Water enter into mold temp. controller through the filter, and then be heated to the required temp. of the mold. The high temp. water is conveyed to the mold to maintain its heat by pump, then the water returned from the mold is heated and pressured to the mold to continue the circulation, thus achieving the effect of temp. control.
|Model||Max Temp. (℃)||Pipe Heater (kw)||Pump Power (kw)||Max. Pump Flow (L/Min)||Max. Pump Pressure (bar)||Heating Tank Number||Cooling Method||Cooling Water pipe (inch)||Circulating Water Pipe (inch)||Dimensions
The above parameters are only for standard models, for customized machines, the parameters are different.
We reserve the right to change the parameters without prior notice.
