Utilizing the method of vacuum conveying, Orste Central Material Feeding/Conveying System (OMCS) transports plastic materials from storage silos to the central dehumidifying & drying system through centralized piping, and then convey the dried material to each molding machine. OMCS is suitable for the integrity of the material of huge capacity, eliminates waste and improves the cost effectiveness of the factory.
Various dosing & mixing for different colors and materials
Effective instant recycling which can mix regrind and new material flexibly
Offer you the most flexibility to easily be expanded or modified equipment, make sure your production safer and more reliable and keep the best working environment.
The Central Feeding System mainly include the following parts, and it can be expanded to include the dehumdifying drying system, granulating recycling system to make the whole factory run automaticall.
OMCS Control Station
Ideal design of integrating the monitoring panel and the control panel.
Friendly interface and accurate control.
Operating and monitoring by a single personnel and can be linked with a PC.
Conveying time, material types, and pipe cleaning time of each station are adjusted by the control station.
Displaying panel shows you how stations, dryers and storage silos work, such as on/off, full or lack of material, and material types of each station.
Extensive interface allows easy expansions up to 40 stations for future demands.
Compact and durable.
Microprocessor touch-style control panel
Display the operating status of machines.
Display the set up status, such as working stations, material types, material conveying time, and pipe cleaning time.
Display abnormal machines and material type.
“OMCS” Control Unit
Ideal design of integrating the monitoring panel and control panel, User-friendly interface, Compact & Durable, Small space to make more productive use of factory floor space.
Pressure air adjustable.
Maximum conveying distance can be 150 meters.
Suitable for conveying the material of large capacity.
Stainless steel made to avoid pollution of materials. Quick coupling devices for quick set-up or easy disconnected with pipes.
Dust-removing Combination: Vortex Cylone & Pulse Dust Collector
Collect dust from the conveying system efficiently.
Double protections for high-pressure blower in operation. Easy to maintain: only to change the filter on time and clean conveniently.
Dedicated and compact design.
Material Cut-off Valve: Stainless steel made, durable device design.
Air Cut-off Valve: Stainless steel made, reliable device design.
Compression Couples: Stainless steel made, connect pipes to construct the completely-closed central vacuum conveying system.
Material Room of Central Feeding System

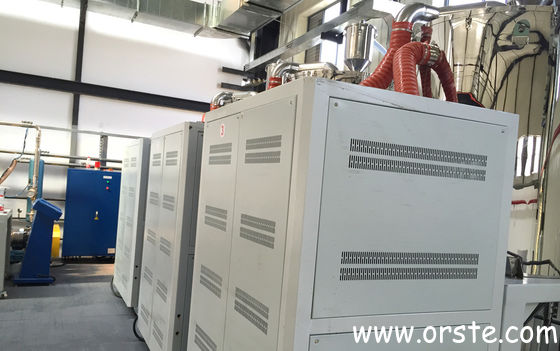

Central Dehumidifying Dryers of Central Feeding System
Piping System (Material Selector) of Central Feeding System
Electrical Cabinet of Central Feeding System
The Central Feeding System is a large comprehensive system which combines dehumidifying drying, material mixing, material feeding, sprue parts granulating and recycling into 1 control system. It is an important and essential process to achieve the fully automatic running of the whole production in plastic material handling.
