Plastic Central Drying and Feeding System for Whole Factory Planning Multiple Material Handling OMCS-50
1 Set / Order
MOQ
USD 8000 / set
Price
Plastic Central Drying and Feeding System for Whole Factory Planning Multiple Material Handling OMCS-50
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ORSTE
Certification: CE, SGS, ISO
Model Number: OMCS-50
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 working days
Supply Ability: 500 Sets / Year
Specifications
Material: Stainless Steel
Color: Can Be Customized
Application: Plastic Material Feeding
Options: Drying, Mixing
Product Description

Central Drying & Feeding System



Material Area (Material Silos) of Central Feeding System



Utilizing the method of vacuum conveying, Orste Central Material Feeding/Conveying System (OMCS) transports plastic materials from storage silos to the central dehumidifying & drying system through centralized piping, and then convey the dried material to each molding machine. OMCS is suitable for the integrity of the material of huge capacity, eliminates waste and improves the cost effectiveness of the factory.



Product Introduction



Utilizing the method of vacuum conveying, Orste Central Material Feeding/Conveying System (OMCS) transports plastic materials from storage silos to the central dehumidifying & drying system through centralized piping, and then convey the dried material to each molding machine. OMCS is suitable for the integrity of the material of huge capacity, eliminates waste and improves the cost effectiveness of the factory.



Features

Continuous auto-operation.

Various dosing & mixing for different colors and materials.

Effective instant recycling which can mix regrind and new material flexibly.

Offer you the most flexibility to easily be expanded or modified equipment, make sure your production safer and more reliable and keep the best working environment.





Components



OMCS Control Station



Ideal design of integrating the monitoring panel and the control panel.

Friendly interface and accurate control.

Operating and monitoring by a single personnel and can be linked with a PC.

Conveying time, material types, and pipe cleaning time of each station are adjusted by the control station.

Displaying panel shows you how stations, dryers and storage silos work, such as on/off, full or lack of material, and material types of each station.

Extensive interface allows easy expansions up to 40 stations for future demands.

Compact and durable.



Microprocessor touch-style control panel



Operating status:

Display the operating status of machines.

Set-up status:

Display the set up status, such as working stations, material types, material conveying time, and pipe cleaning time.

Abnormal:

Display abnormal machines and material type.



“OMCS” Control Unit



Ideal design of integrating the monitoring panel and control panel, User-friendly interface, Compact & Durable, Small space to make more productive use of factory floor space.



High-pressure Blower



Pressure air adjustable.

Maximum conveying distance can be 150 meters.

Suitable for conveying the material of large capacity.



Material Selector



Stainless steel made to avoid pollution of materials. Quick coupling devices for quick set-up or easy disconnected with pipes.





Dust-removing Combination: Vortex Cylone & Pulse Dust Collector



Collect dust from the conveying system efficiently.

Double protections for high-pressure blower in operation. Easy to maintain: only to change the filter on time and clean conveniently.

Dedicated and compact design.



Material Cut-off Valve: Stainless steel made, durable device design.

Air Cut-off Valve: Stainless steel made, reliable device design.

Compression Couples: Stainless steel made, connect pipes to construct the completely-closed central vacuum conveying system.



Parameters

Model Blower (Hp) IMMs (set) Material Throughput (Kg/H) Feeding Point (pcs) Max. Feeding Distance (m) Max. Feeding Height (m) Remarks
OMCS-5 5 5 1 500 5 20 5 To be Customized
OMCS-10 7.5 7 4 800 10 50 8 To be Customized
OMCS-20 10 14 6 800 20 80 10 To be Customized
OMCS-30 10 22 8 800 30 80 10 To be Customized
OMCS-50 10 42 8 800 50 80 10 To be Customized
OMCS-80 15 70 10 1500 80 200 20 To be Customized
OMCS-100 20 88 12 2000 100 300 30 To be Customized




Notes:

1. The above parameters is only for reference, the actual parameters is made according to the actual requirement and site condition.

2. Power: 3 Phase / 380 V /50 Hz (Can be customized)



Application Cases



Plastic Central Drying and Feeding System for Whole Factory Planning Multiple Material Handling OMCS-50 0

Central Material Room (Central Control Station, Electric Cabinet, Central Blower, Material Dryer)



Plastic Central Drying and Feeding System for Whole Factory Planning Multiple Material Handling OMCS-50 1

PLC Touch Screen (with many screens for different functions) of Central Control Station



Plastic Central Drying and Feeding System for Whole Factory Planning Multiple Material Handling OMCS-50 2

Central Piping System (with vacuum air pipe, material pipe, pipe clamps, bends, supporting frames and etc)





Plastic Central Drying and Feeding System for Whole Factory Planning Multiple Material Handling OMCS-50 3

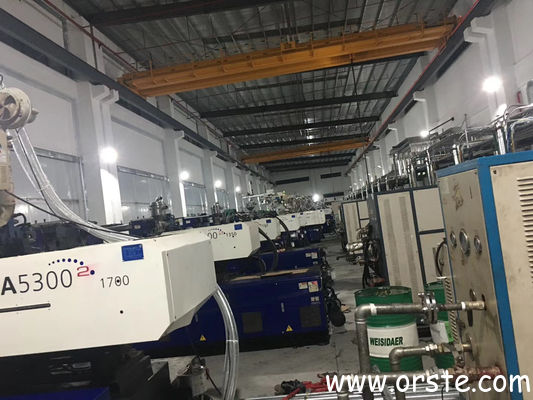

Soft pipes for connecting the SUS pipes to the hopper receiver at the feed port of each IMMs (Material cut-off device, Air cut-off device, hopper receivers)



Plastic Central Drying and Feeding System for Whole Factory Planning Multiple Material Handling OMCS-50 4

Materal Selector and Dust Collecting Device (with quick coupling)
